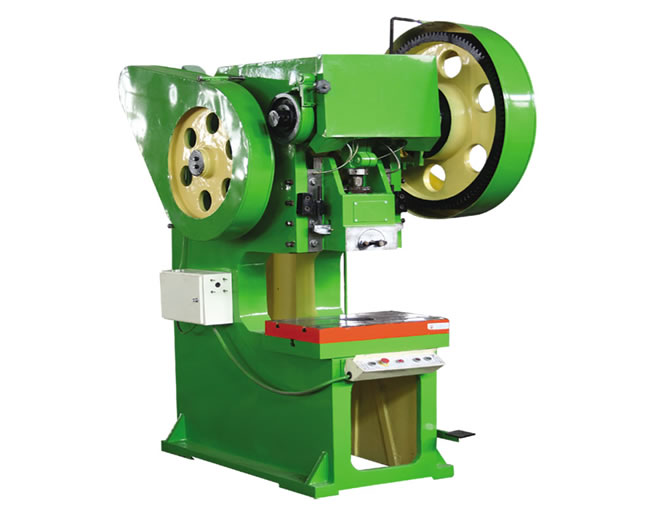

J21S deep throat pressure machine

Technical parameters of J21S deep throat pressure machine

Model		Open-type deep throat
Item		Unit	J21S-16	J21S-25	J21S-40	J21S-63T	J21S-80	J21S-100
Nominal pressure		kN	160	250	400	630	800	1000
Slider stroke		mm	60	60	100	110	115	130
Times of slider stroke		Times/m	120	80	60	50	50	50
Maximum close height		mm	160	280	320	340	385	410
Regulating variable of close height		mm	60	60	70	100	80	100
Distance between slider center and machine		mm	500	500	500	600	500	850
Dimension of work table	Front and back	mm	280	320	400	450	490	550
Dimension of work table	Left and right	mm	450	540	650	700	760	830
Size of shank hole	Diameter	mm	30	38	40	60	60	60
Size of shank hole	Depth	mm	50	60	60	100	60	80
Distance between two columns		mm	220	200	250	310	310	365
Thickness of cushion		mm	50	55	75	85	90	100
Motor	Power	kw	2.2	2.2	3	5.5	7.5	7.5
Motor	Rotate speed	rpm	1440	1440	1440	1440	1440	1440
Machine weight		kg	1000	1600	3000	3800	5200	6000
