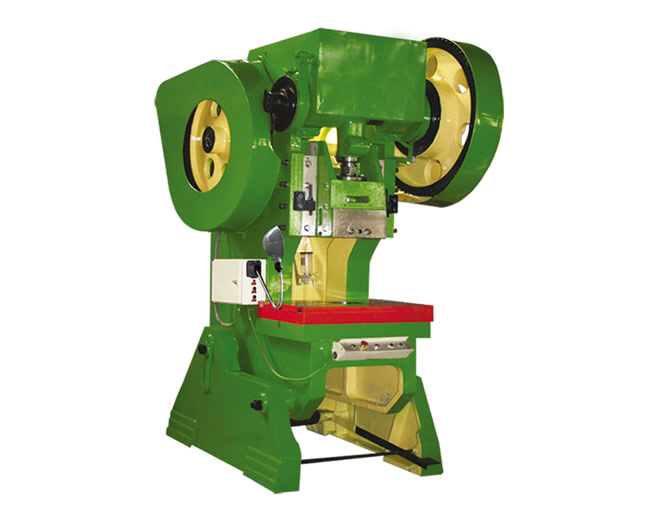

JB23 series open-type inclinable pressure machine

Technology parameters of JB23 series open-type inclinable pressure machine

Item Name		Machine model Unit and number	JB23	JB23	JB23	JB23	JB23	JB23	JB23
Item Name		Machine model Unit and number	100噸 100t	80噸 80t	63噸 63t	40噸 40t	25噸 25t	16噸 16t	10噸 10t
Nominal force		kN	1000	800	630	400	250	160	100
Slider stroke		mm	130	115	110	100	60	60	50
Stoke times		Time/m	45	45	50	50	100	140	150
Close height		mm	400	385	380	350	300	245	200
Maximum regulating variable of close height		mm	100	80	80	75	70	50	30
Distance between slider center and machine		mm	280	260	250	220	185	160	120
Dimension of work table	Front and back	mm	553	490	450	400	320	280	230
Dimension of work table	Left and right	mm	830	760	700	650	540	455	370
Hole size of work table	Diameter	mm	190	170	170	140	130	130	100
Distance between columns		mm	365	310	310	245	200	215	215
Size of shank hole	Diameter	mm	60	60	60	40	38	35	30
Size of shank hole	Depth	mm	85	60	60	60	60	50	50
Thickness of work table		mm	95	95	85	70	55	50	40
Maximum inclination degree		Degree	20	20	20	20	20	20	30
Motor	Power	kW	7.5	7.5	5.5	3	2.2	2.2	1.5
External dimension	Front and back	mm	2000	1800	1700	1500	1100	950	800
	Left and right	mm	1500	1300	1200	1100	800	620	600
	Height	mm	2800	2600	2500	2250	2000	1700	1550
Total weight		kg	6000	5000	4000	2500	1500	750	450
