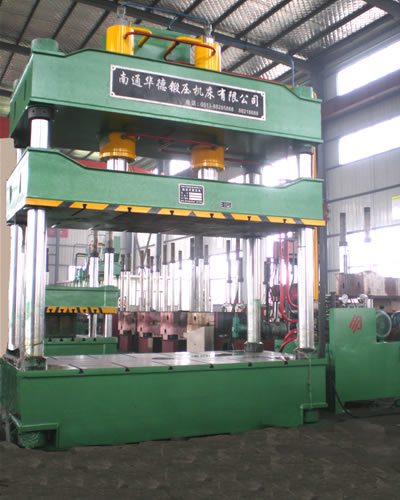

★This series is a universal type; it is applicable for the pressing of plastic materials. Such as the powder products molding, cold (hot) extrusion sheet metal forming, stretching, stamping, bending, reversing and calibration process.
★The machine has the independent electric power system, is controlled through the centralized control buttons, which can realize three working mode of adjustment, manual and semi-automatic adjustment.
★According to the processing needs ,the working pressure of the machine , the pressing speed and the stroke is adjustable, at the same time ,it has three ways of processing , the ejection process, the non-ejection process, the stretching process , and in every different process ,there are two movement types to choose ,namely fixed pressure mode and fixed stroke mode, adopting the fixed pressure mode, it has the pressure protection, time delay ,and automatic return.
★Besides the mentioned functions, the ejection cylinder has the characteristics of pull-out, time delay and automatic return.
|
Nominal pressure 6300KN
Ejecting pressure 1000KN
Liquid’s maximum working pressure 25Mpa
Slider stroke 900mm
Ejecting stroke 350
Opening height 1500mm
Slide stroke idle stroke down 80mm/s working10mm/s back stoke 60mm/s
Dimension of work table Left and right 1500mm Front and back 1500mm
External dimension Left and right 4200mm Front and back 4200mm, Height above ground 5600mm
Total power of motor 44KW |
|
|
This product parameters, performance, characteristics and configuration is just for reference, if there is any change, please forgive us not to put out any notice. For the detailed information, please call us to inquire! |
